Home > Products > PREPARATION MACHINERY > Tablet Capsule Counting MachineTablet Capsule Counting Machine

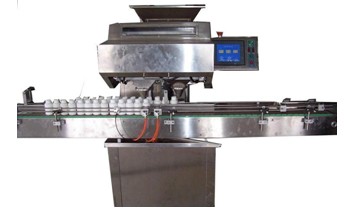

16 channels CCD counting machine
Descriptions:
High speed electron counting & filling machine is suitable for different shape and specification tablet,capsule,pill and do not need to change mould.It is convenience and accurate.
1.Using shake approach,has 16 chute,high speed
2.Accounting is accurate,the counting precision is 99.99%
3.Stable running,low noise
4.Continuous running,do not stop when change the bottle
5.Be suitable for different shape tablet,capsule,pill
6.Two chutes for feeding bottles to prevent stop
7.Intelligent design,self-checking,trouble hint,alarm,emergent stop and so on,easy and safe.
8.Airproof and dustproof,easy to disassemble,according with GMP
Technical parameters:
|
Item |
CCD-16 |
|
Technology |
CCD technology |
|
Power |
500W,220V/110V,50/60HZ |
|
Application Range |
All kinds of tablets,capsules,or even transparent soft gelatin capsules. |
|
Bottle neck diameter (mm) |
Min 25 |
|
Bottle body diameter (mm) |
35-60 |
|
Volume of bottle (variable) |
15-300 ml or according to customer |
|
Output Capability(pcs/min) |
3000-6000 |
|
Overall dimensions (mm) |
1600*1250*1600 |
|
Weight(kg) |
450 |
