Home > Products > PREPARATION MACHINERY > Liquid filling machine & piston fillerLiquid filling machine & piston filler

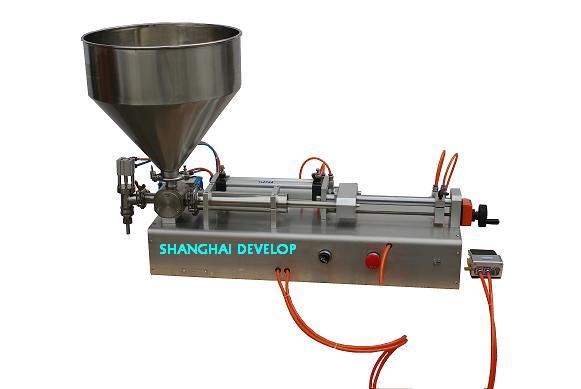

DGF-B Ointment & cosmetic piston filler
Main Introduction:
The Model DGF-B Single Head Cream Filling Machine,simple and reasonable in design,highly accurate and easily operated,is a product upgraded and innovated by introducing foreign advanced filling machine technology.
As an ideal apparatus for filling high concentration fluid,it is useful in pharmaceutics,daily chemicals,foodstuffs,cosmetics,pesticide and special trades.Not electricity-powered,the machine is safer,and with personalized design,it can meet modern enterprises' requirements
This machine is semi-automatic piston pasty liquid filling machine
With German FESTO and Taiwan's AirTac pneumatic elements adopted,it is reasonable and compact in design,and easy in operation.
Its cylinder body and piston are made of 316L stainless steel and lined with PTFE,conforming to GMP.
Filling volume and speed adjustable by the end wheel with digital number showing.
Filling bulkhead is leakage and wire-drawing-proof and a lifting filling device provided.
Technical Parameters:
|
Item |
Parameter |
|
Power |
Pure pneumatic |
|
Filling volume adjustment method |
Adjustable by end wheel with digital showing |
|
Air pressure |
0.4-0.6MPa |
|
Filling speed |
10-30 Bottles/min. |
|
Filling accuracy |
plusmn;1 |
|
Filling range |
5-50ml 30-300ml 50-500ml,100-1000ml 250-2500ml 500-5000ml |
