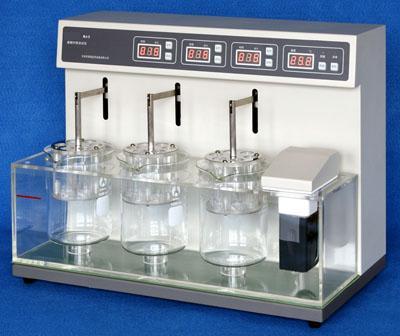

Home > Products > LAB EQUIPMENT > Tablet Disintegration TesterTablet Disintegration Tester

　　BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions .

　　Applicable standards.

　　1. National standard(Chinese codex)/2000/

　　2. Corporate standard (Disintegration tester)Q/12X0188-2004

　　Features

　　1. There are eighteen tubes in three basket assemblies;

　　2. Each test station is driven independently,Auto stop at timing point

　　3. The bath liquid can achieve an even temperature.

　　4. A MPU is used to automatically control the temperature,time and frequency of nacelle back and forth ;

　　5. Timing at will .the preset and real time data can be displayed alternately in time

　　6. Automation : auto-test .auto-diagnose .auto-alarm

　　Specifications

　　1.basket assembly 3

　　2.Nacelle back and forth frequency (30-32)/min

　　3.Nacelle back and forth range (55±1)mm

　　4.Automatic time range 1 to 900 minutes

　　5.Accuracy of controlling temperature room temperature to 45 ℃

　　6.temperature precision: +/-0.5℃

　　7.Minimum distance between two basket25+/-2mm

　　8.Power 220V/50HZ/600Wor 110V/60HZ/600W

　　9.Dimension (540×300×420)mm

　　10 .Weight 22KG
